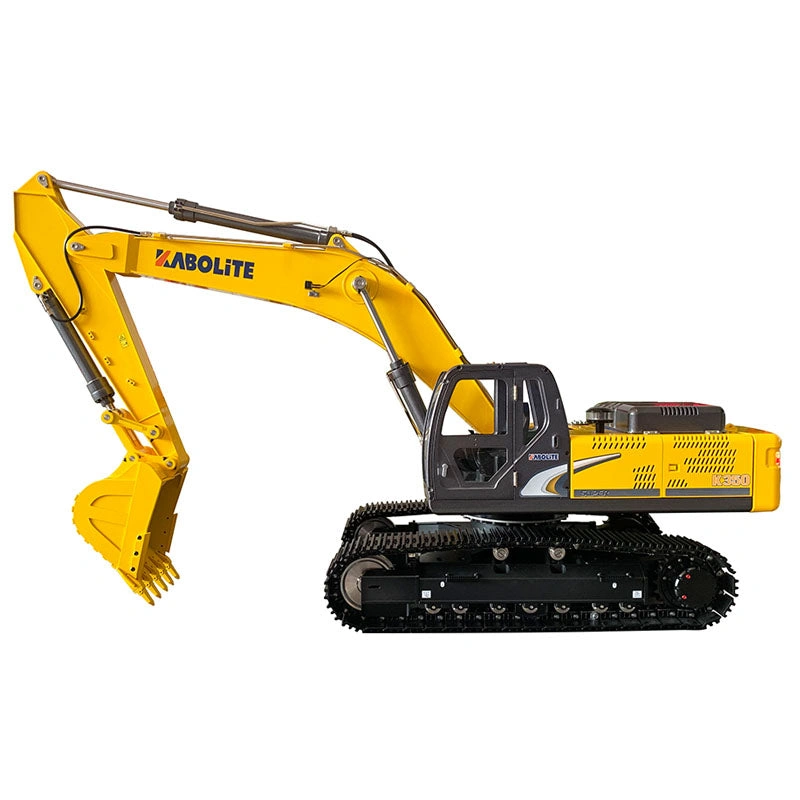

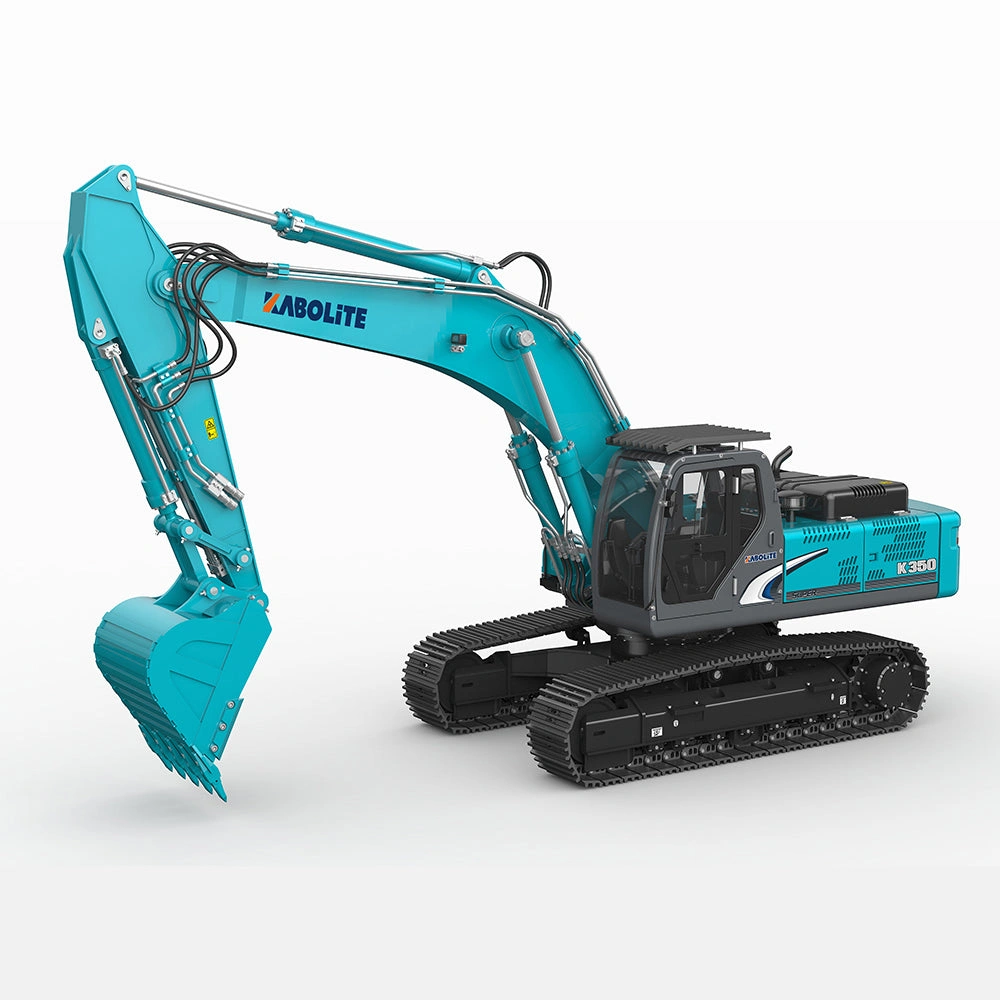

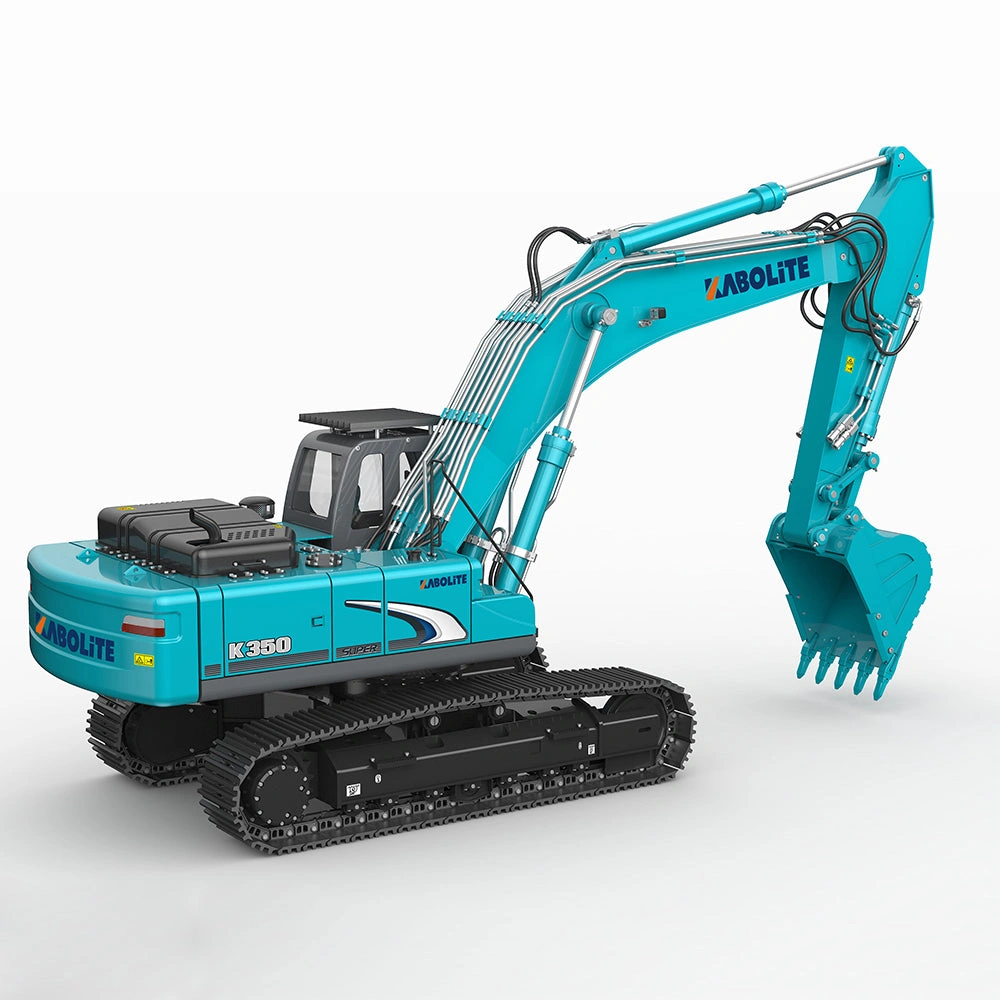

Kabolite 350 RC Excavator (2025 Model)
This is the original Kabolite 350 Hydraulic RC Excavator Model. This is shipped directly from huina factory in China to AU/CA/EU/US/Dubai, door to door. We ship with couriers such as UPS/DHL/FedEx. It usually takes 7-15 days to deliver to customers.
ALL UK CUSTOMERS SHOULD CONTACT [email protected] BEFORE ATTEMPTING TO PURCHASE
Detailed Description of the K350-Excavator
Operating Weight 18KG | Pump Speed 2000-8400 rpm | Max Digging Depth 485mm | Bucket Capacity 0.00046864 cu yd | Bucket Breakout Force 20-35KG |
Packing Dimension:90*33*40cm
NET WEIGHT： 18KG
Gross Weight: 26.50KG
The track motors are brushless motors with a 4 stage planetary gear reduction drive
Track Drive
Swing motor

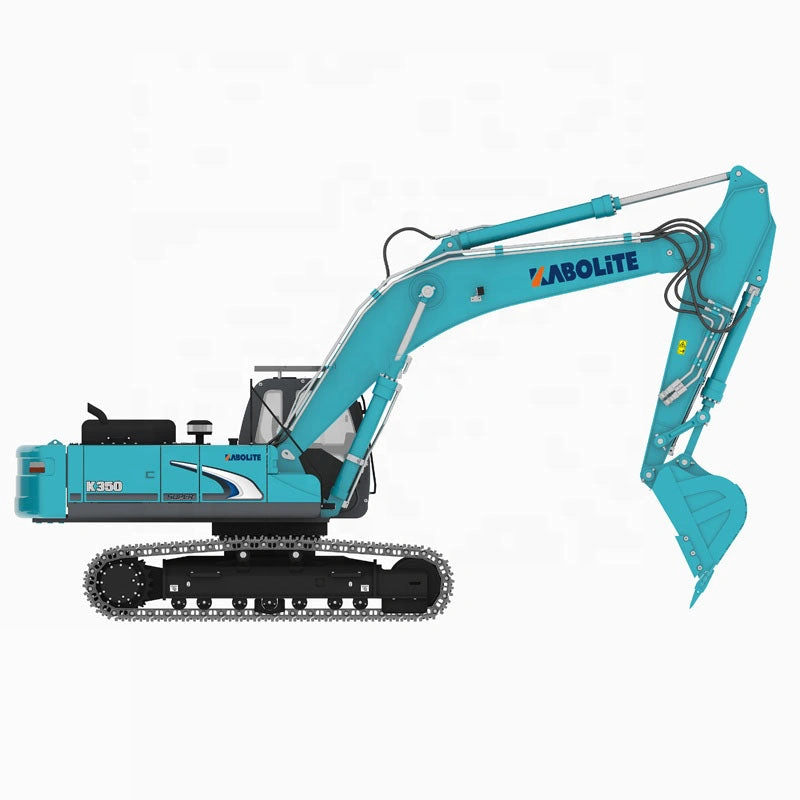

K350-100 Dimensions:
Dimensions:K350-100 A. Overall length | Unit:mm 815.4 |
|
B. Overall width | 233.9 | |
C. Overall height (to top of boom) | 274.2 | |
D. Basic machine length | 440.7 | |
E. Overall height (to top of cab)* | 241.5 | |
F. Ground clearance of rear end* | 102.0 | |
G. Center distance of tumblers | 298.0 | |
H. Overall length of crawler | 376.1 | |
I. Crawler height at tumbler center* | 83.9 | |
J. Track gauge | 184.0 | |
K. Width of crawler shoe | 49.9 | |
L. Ground clearance of undercarriage* | 40.5 |
*Excludes height of grouser bar.
K350-100 Backhoe bucket:
Remote control channel configuration:
KABOLITE-K350
（Transmitter configuration guide）
Channel # | Configuration neme | lnput | Control | Position |
CH1 | Bucket |
| Gimbal | Center |
CH2 | Main Boom |
| Gimbal | Center |
CH3 | Stick |
| Gimbal | Center |
CH4 | Swing Motor |
| Gimbal | Center |
CH5 | Left Track | VRA | Knob | Center |
CH6 | Right Track | VRB | Knob | Center |
CH7 | Pump | SWA | Switch | Up |
CH8 | Light Module | SWD | Switch | Up |
CH9 | Sound Module | SWB | Switch | Up |
CH10 | Sound Module Mixer |
|
| 6 |

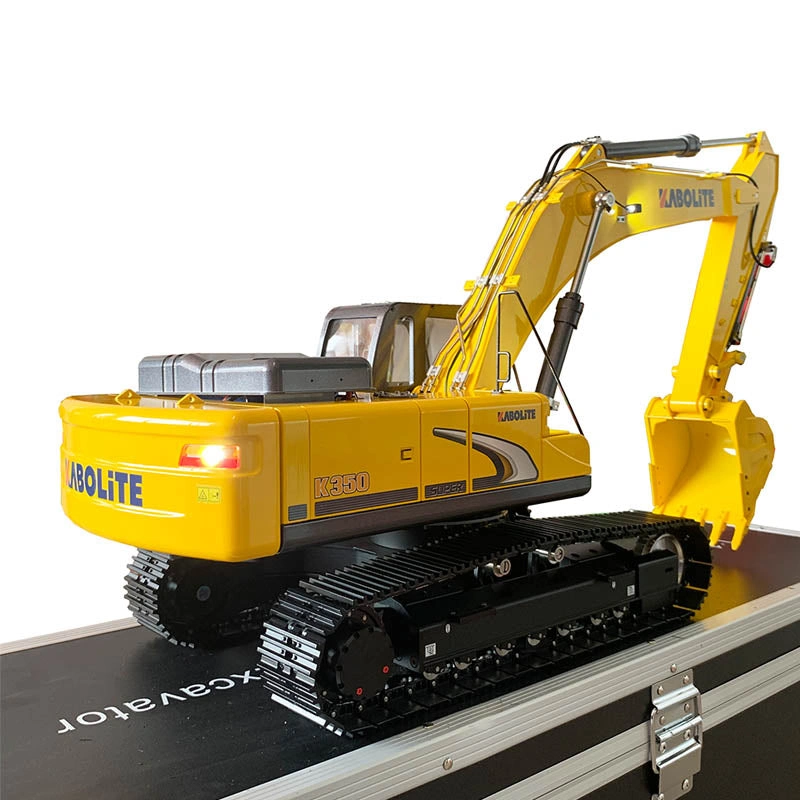

The packaging is made of Aluminium Box+Paper Carton Box
